Continuous runtime48 h
Operating range−13° / 158°F
Overall height36 in
Attachments22
States in service14

Pillar

Pillar

Pillar

Gravion

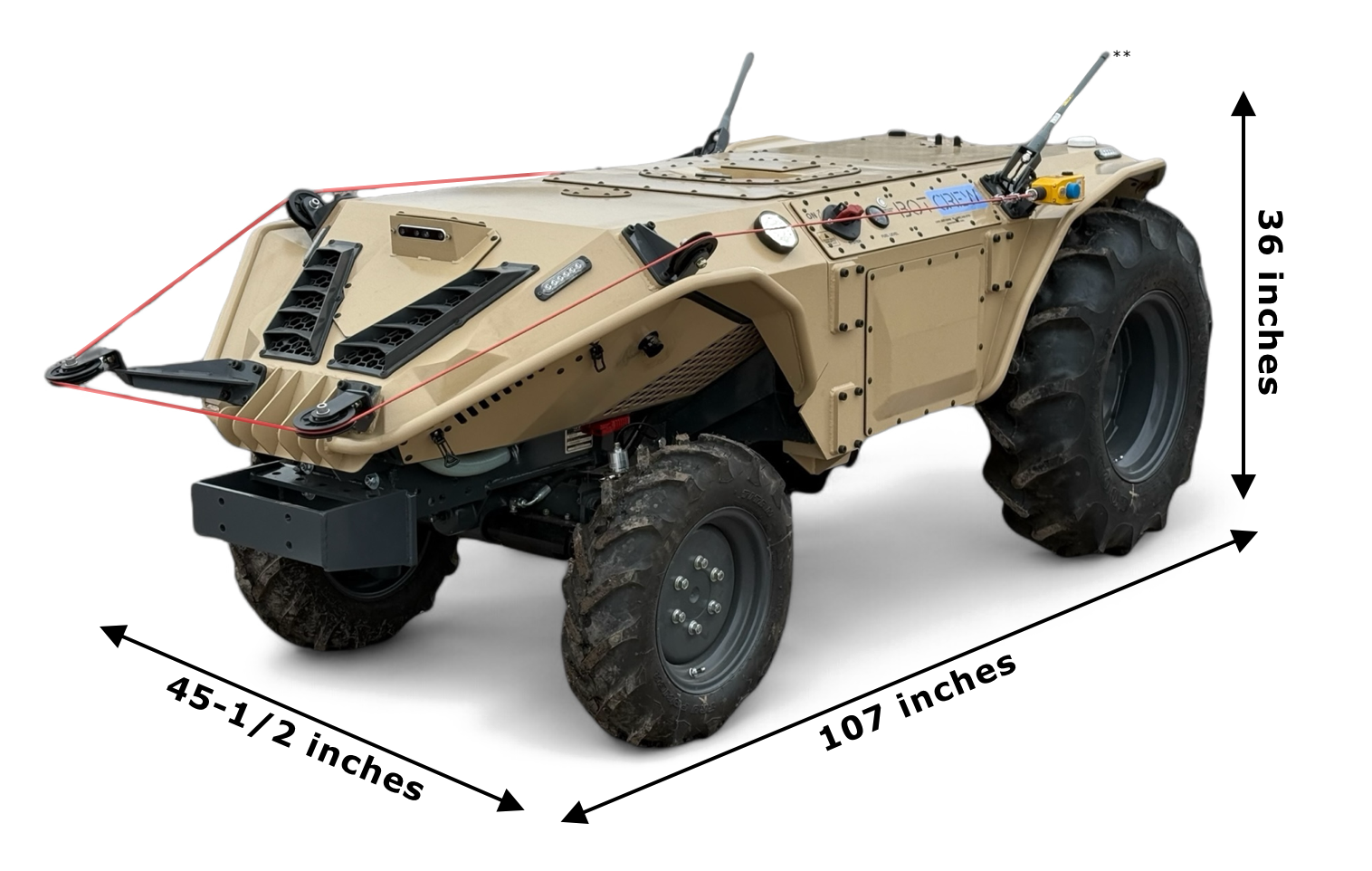

Gravion utility robot with dimensions: 107 in long, 45.5 in wide, 36 in tall
  • Powertrain26 hp liquid-cooled diesel
  • AntennasFoldable
  • SafetyPerimeter e-stop
  • Drive4WD · differential lock
  • Runtime48 h continuous · 23 US gal
Time to operate5 min

Dimensions

Length
107 in2,718 mm
Width
45.5 in1,156 mm
Height
36 in914 mm
Antennas
Foldable

Powertrain

Engine
26 hp dieselliquid-cooled
Fuel
23 US gal87 L
Runtime
48 h continuous
Drive
4WD · diff lock

Implements

3-pt hitch lift
1,800 lb815 kg · at hitch
Lift at 24 in
1,400 lb635 kg
Drawbar pull
1,500–2,000 lb680–910 kg
Rear PTO
19.5 hp540 rpm
Mid PTO
2,500 rpm

Operation

Temperature
−13 to 158°F−25 to 70°C
Time to operate
5 min
Control
Remote · mixed · auto
Safety
Perimeter e-stop

36IN

3-point hitch1,800 lb lift
Rear PTO19.5 hp · 540 rpm
Mid PTO2,500 rpm
Hydraulic portsFront loader mount
Quick-attachOptional

    All attachments22

    + SpeedBenefit label

    + SafetyBenefit label

    1,000 ftof cable laid in under 3 minutes

    −13°F
    158°F
    Select a mode

    Controlled

    Full autonomy

    ▶Video neededSoftware walkthrough film30–60 s · 16:9 · screen capture + field footage
    ▶Video neededRoute planned over a site map8–12 s loop · 16:10

    Feature label

    ▶Video neededPerception and camera view8–12 s loop · 16:10

    Feature label

    ▶Video neededSwitching remote → autonomy8–12 s loop · 16:10

    Feature label

    By hand
    90MIN
    With Gravion
    3MIN
    Customer

    Name · Role · Company

    Deployments
    00Sites
    00States
    0.0GW solar installed
    Projects per state
    ◎Map placeholderDeployment sitesOne entry per project · filled in from sites.js
    ▶Video neededFactory film30–60 s · 16:9 · fabrication → assembly → test drive
    ◻Video neededWeldingloop or still · 4:5
    ◻Video neededHarness and electronicsloop or still · 4:5
    ◻Video neededFinished machinesloop or still · 4:5

    Lease

    6+ month termsDelivered to site
    To confirm

    Fleet / purchase

    Terms TBC
